Gefen DisplayPort Extender Over Fiber Optic Cable - 1 Input Device - 1 Output Device - 1000 ft Range - DisplayPort - WQXGA - 2560 x 1600

Extend DisplayPort with HDCP and DPCP support over dual LC-terminated multi-mode fiber optic cables

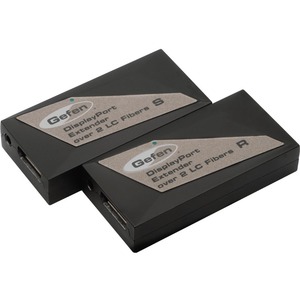

The Gefen EXT-DP-CP-2FO extends DisplayPort up to 1000 feet (300 meters) using two strands of 50/125µm multi-mode (OM2/OM3) LC-terminated fiber optic cable. Resolutions up to 2560 x 1600 (WQXGA) are supported. 62.5/125µm (OM1) fiber may also be used for a maximum range of up to 500 feet (150 meters).

Compared to similar copper-based solutions, optical signal transmission provides galvanic isolation and much better resistance to electromagnetic interference. Sender and Receiver modules feature cast Aluminum enclosures, providing further immunity to radiated noise.

Female connectors allow optimized lengths of DisplayPort cables to be used, preventing stress on source and display connectors. This, along with the compact size of the modules help create a clean and trouble-free installation by reducing clutter around the connector panels.
