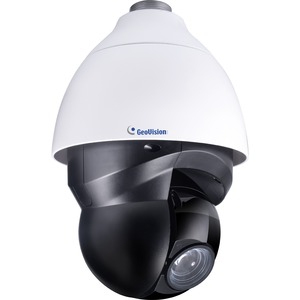

GeoVision GV-QSD5731-IR 5 Megapixel Outdoor Network Camera - Color - Dome - 492.13 ft Infrared Night Vision - H.264, MJPEG, H.265 - 2592 x 1944 - 4.60 mm- 152 mm Zoom Lens - 33x Optical - 30 fps - CMOS - Wall Mount, Corner Mount, Pole Mount, Swan Neck Mou

GV-IP Speed Dome (GV-QSD5731-IR) is an outdoor network PTZ camera that offers 33x optical zoom and 10x digital zoom, capable of showing smooth live view with great details. This camera can simultaneously deliver four video streams in resolutions up to 2592 x 1944 at 30 fps, which allows up to 150 m (500 ft) effective IR distance. GV-QSD5731-IR supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths.

Wide surveillance coverage is made possible with 360° endless panning and -20°~100° tilting capacity. PTZ functions such as Preset, Auto Pan, and Patrol can be programmed and activated by schedule. The GV-QSD5731-IR supports pan/tilt speeds ranging from a fast patrol of 280° per second to a slow ramble of 0.1° per second with 0.1° pan accuracy for fast and accurate tracking ability.

GV-QSD5731-IR also features Servo Feedback and Electronic Image Stabilizer (EIS) technology. The Servo Feedback technology ensures the camera view returns to the previous position when encountering external force (e.g. human interference) or environmental vibration. EIS technology can effectively produce stable images by actively sensing directional movement of the images and compensating accordingly; this is particularly useful for cameras installed at places where environmental movement (e.g. strong wind, the passing-by heavy vehicles) is constant, and when high optical zoom is executed.

Availability: Call or email

$1,594.15
$1,594.15
GeoVision, Inc

Description

Details

GeoVision GV-QSD5731-IR 5 Megapixel Outdoor Network Camera - Color - Dome - 492.13 ft Infrared Night Vision - H.264, MJPEG, H.265 - 2592 x 1944 - 4.60 mm- 152 mm Zoom Lens - 33x Optical - 30 fps - CMOS - Wall Mount, Corner Mount, Pole Mount, Swan Neck Mount, Straight Tube Mount, Junction Box Mount - IK10 - IP66 - Weather Proof, Vandal Resistant

OVERVIEW:

  • Limited Warranty : 2 Year
  • Video Formats : H.265
  • Video Formats : MJPEG
  • Video Formats : H.264
  • HD Recording : Yes
  • Storage Type : Memory Card
  • Connectivity Technology : Wired
  • Features : Privacy Masking
  • Features : 3D Noise Reduction
  • Features : Electronic Image Stabilization
  • Features : PTZ
  • Features : Removable IR Cut-off Filter
  • Features : Motion Detection
  • Features : Day/Night
  • Features : Wide Dynamic Range
  • Features : Automatic White Balance
  • Features : Ingress Protection
  • Lens Type : Zoom
  • Shortest Shutter Speed : 1/10000 Second
  • Image Sensor Type : CMOS
  • Maximum Video Resolution : 2592 x 1944
  • Input Voltage : 30 V DC
  • Input Voltage : 24 V AC
  • Product Color : White
  • Remote Management : Yes
  • Indoor/Outdoor : Outdoor
  • Minimum Focal Length : 4.60 mm
  • Longest Shutter Speed : 1 Second
  • Night Vision : Yes
  • Package Contents :
    • 33x 5MP H.265 Low Lux WDR Pro Outdoor IR IP Speed Dome
    • M4 Screw with Rubber
    • 3-Pin Power Terminal Block (AC 24V)
    • Pendant cap
    • 14-Pin Alarm/Audio I/O Terminal Block
    • Download Guide
    • Warranty Card
  • Maximum Focal Length : 152 mm
  • Network (RJ-45) : Yes
  • Maximum Frame Rate : 30 fps
  • Night Vision Distance : 492.13 ft
  • Mount Type : Junction Box Mount
  • Mount Type : Straight Tube Mount
  • Mount Type : Swan Neck Mount
  • Mount Type : Pole Mount
  • Mount Type : Corner Mount
  • Mount Type : Wall Mount
  • Impact Protection Rating : IK10
  • Video Signal Format : PAL
  • Video Signal Format : NTSC
  • Night Vision Type : Infrared
  • Form Factor : Dome
  • Ingress Protection Rating : IP66
  • Number of IR LEDs : 16
  • Durability : Vandal Resistant
  • Durability : Weather Proof
  • Lens Included : Yes
  • Color Supported : Color
  • Height : 12.4"
  • Width : 8.1"
  • Environmentally Friendly : Yes
  • Maximum Aperture : f/1.6
  • Field of View : Horizontal 55° ~ 2°
  • Optical Zoom : 33x
  • Effective Camera Resolution : 5 Megapixel
  • Diameter : 8.1"
  • Weight (Approximate) : 8.38 lb
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Additional Info

    Additional Info

    SKU 01948125QSD5731IR-BF
    Weight 8.3800
    Is Featured N/A
    Manufacturer GeoVision, Inc
    Manufacturer Part Number 125-QSD5731-IR
    Width 8.1"
    Length 1
    Height 12.4"
    Product ID 01948125QSD5731IR
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
